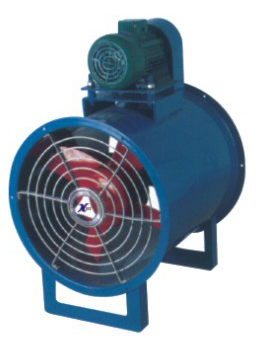

T40I型轴流通风机
作者:南通宝通风机 发布日期:2010-11-27
点击:5311
产品详细介绍
T40I型轴流通风机系在原T30型的基础上进行改造、设计的,空气效率从原来的69%提高到84%,是一种结构简单,噪声小的低压轴流通风机。输送的气体必须是清洁、干燥,不得混有杂质和过多的水蒸汽及腐蚀性气体,其温度不得超过45度。 |
机号 |
转速(rpm) |
叶片角度 |
风量(m3/h) |
风压(Pa) |
轴功率(kw) |
电机功率(kw) |
噪声dB(A) |
2.5 |
2900 |
15 |
1130 |
125 |
0.0578 |
0.09 |
67 |
20 |
1451 |
138 |
0.0783 |
0.09 |
69 |
25 |
1861 |
140 |
0.0992 |
0.12 |
70 |
30 |
2009 |
149 |
0.1145 |
0.12 |
71 |
35 |
2272 |
184 |
0.1657 |
0.18 |
73 |
1450 |
15 |
565 |
31 |
0.0072 |
0.025 |
52 |
20 |
724 |
34 |
0.0098 |
54 |
25 |
932 |
35 |
0.0124 |
55 |
30 |
1012 |
37 |
0.0143 |
56 |
35 |
1141 |
46 |
0.0207 |
58 |
3 |
2900 |
15 |
1951 |
180 |
0.144 |
0.18 |
72 |
20 |
2498 |
199 |
0.195 |
0.25 |
74 |
25 |
3218 |
202 |
0.247 |
0.25 |
74 |
30 |
3418 |
215 |
0.285 |
0.37 |
76 |
35 |
3931 |
266 |
0.413 |
0.55 |
77 |
1450 |
15 |
976 |
45 |
0.018 |
0.09 |
57 |
20 |
1249 |
50 |
0.0244 |
59 |
25 |
1609 |
51 |
0.0308 |
61 |
30 |
1739 |
54 |
0.0356 |
61 |
35 |
1958 |
67 |
0.0516 |
64 |
3.5 |
2900 |
15 |
3100 |
245 |
0.311 |
0.37 |
76 |
20 |
3971 |
272 |
0.422 |
0.55 |
78 |
25 |
5119 |
274 |
0.533 |
0.55 |
79 |
30 |
5519 |
292 |
0.615 |
0.75 |
80 |
35 |
6279 |
363 |
0.892 |
1.1 |
81 |
1450 |
15 |
1552 |
62 |
0.0389 |
0.06 |
61 |
20 |
1980 |
68 |
0.0528 |
0.06 |
61 |
25 |
2560 |
69 |
0.0666 |
0.09 |
64 |
30 |
2761 |
74 |
0.0769 |
0.09 |
65 |
35 |
3121 |
90 |
0.1113 |
0.12 |
67 |
4 |
2900 |
15 |
4630 |
321 |
0.605 |
1.1 |
80 |
20 |
5918 |
355 |
0.822 |
1.1 |
82 |
25 |
7639 |
359 |
1.039 |
1.1 |
83 |
30 |
8240 |
382 |
1.200 |
1.5 |
84 |
35 |
9310 |
473 |
1.732 |
2.2 |
85 |
1450 |
15 |
2318 |
80 |
0.0756 |
0.25 |
65 |
20 |
2959 |
88 |
0.1027 |
67 |
25 |
3820 |
90 |
0.1299 |
68 |
30 |
4118 |
95 |
0.1500 |
69 |
35 |
4658 |
119 |
0.2168 |
72 |
5 |
1450 |
15 |
4522 |
125 |
0.2231 |
0.75 |
71 |
20 |
5789 |
138 |
0.314 |
73 |
25 |
7448 |
140 |
0.396 |
74 |
30 |
8050 |
149 |
0.457 |
75 |
35 |
9090 |
184 |
0.662 |
77 |
960 |
15 |
2992 |
54 |
0.0669 |
0.25 |
62 |
20 |
3830 |
61 |
0.0909 |
64 |
25 |
4939 |
62 |
0.1149 |
65 |
30 |
5332 |
66 |
0.1327 |
66 |
35 |
6019 |
81 |
0.1920 |
68 |
6 |
1450 |
15 |
7808 |
180 |
0.575 |
1.1 |
76 |
20 |
9990 |
200 |
0.780 |
1.1 |
78 |
25 |
12899 |
202 |
0.983 |
1.1 |
80 |
30 |
13900 |
215 |
1.138 |
1.5 |
80 |
35 |
15700 |
267 |
1.650 |
2.2 |
81 |
960 |
15 |
5159 |
79 |
0.167 |
0.75 |
67 |
20 |
6610 |
87 |
0.227 |
69 |
25 |
8510 |
88 |
0.286 |
71 |
30 |
9202 |
94 |
0.331 |
72 |
35 |
10400 |
117 |
0.476 |
74 |
7 |
1450 |
15 |
12398 |
245 |
1.240 |
1.5 |
78 |
20 |
15901 |
272 |
1.690 |
1.5 |
79 |
25 |
20498 |
274 |
2.130 |
2.2 |
80 |
30 |
22100 |
294 |
2.470 |
3 |
81 |
35 |
25178 |
363 |
3.570 |
4 |
83 |
960 |
15 |
8201 |
108 |
0.360 |
0.75 |
71 |
20 |
10501 |
119 |
0.490 |
0.75 |
73 |
25 |
13500 |
121 |
0.619 |
0.75 |
74 |
30 |
14602 |
128 |
0.715 |
0.75 |
75 |
35 |
16499 |
159 |
1.034 |
1.1 |
76 |
8 |
1450 |
15 |
18500 |
321 |
2.430 |
3 |
79 |
20 |
23699 |
355 |
3.290 |
4 |
80 |
25 |
30499 |
359 |
4.160 |
5.5 |
81 |
30 |
33001 |
381 |
4.810 |
5.5 |
83 |
35 |
38099 |
473 |
6.960 |
7.5 |
84 |
960 |
15 |
12301 |
140 |
0.703 |
1.1 |
75 |
20 |
15700 |
156 |
0.954 |
1.1 |
77 |
25 |
20200 |
158 |
1.210 |
1.5 |
78 |
30 |
21802 |
168 |
1.400 |
1.5 |
78 |
35 |
24052 |
208 |
2.020 |
2.2 |
80 |
9 |
960 |
15 |
17399 |
177 |
1.270 |
1.5 |
77 |
20 |
22298 |
197 |
1.720 |
2.2 |
78 |
25 |
28699 |
199 |
2.180 |
2.2 |
79 |
30 |
31100 |
212 |
2.510 |
3 |
80 |
35 |
35100 |
263 |
3.640 |
4 |
81 |
10 |
960 |
15 |
24001 |
220 |
2.150 |
2.2 |
79 |
20 |
30701 |
243 |
2.910 |
3 |
80 |
25 |
39499 |
246 |
3.680 |
4 |
81 |
30 |
42700 |
262 |
4.260 |
5.5 |
82 |
35 |
48200 |
323 |
6.150 |
7.5 |
83 | |
